Red Skid Mounted Fire Pump 3000GPM With Split Case Firefighting Pump Sets

Product Details

Place of Origin: China

Brand Name: CNP NM FIRE

Certification: UL/FM

Model Number: package

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: Export Packing

Delivery Time: 30-45 Working Days

Payment Terms: L/C, T/T

Get Best Price
Highlight:

fire pump skid package

,

diesel engine pump set

,

Fire Pump 3000GPM

Certification::
UL/FM/NFPA 20
Pump::
SCF300-250-490 (12x10")
Casing::
Ductile Cast Iron
Flow::
3000GPM
Head::
135PSI
Color:
Red
Certification::
UL/FM/NFPA 20
Pump::
SCF300-250-490 (12x10")
Casing::
Ductile Cast Iron
Flow::
3000GPM
Head::
135PSI
Color:
Red

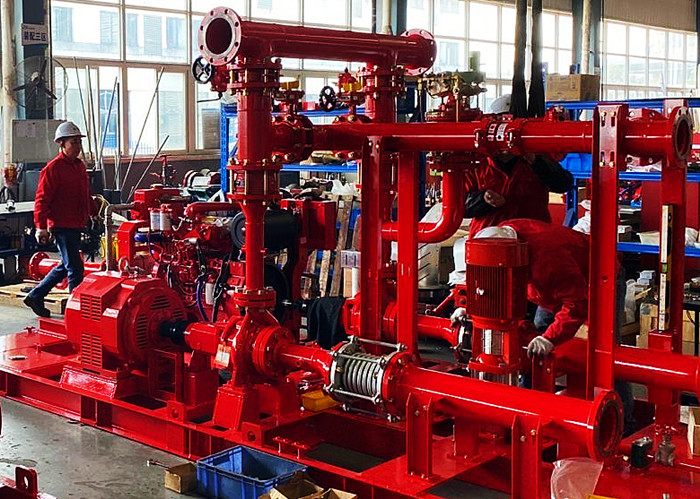

Red Skid Mounted Fire Pump 3000GPM With Split Case Firefighting Pump Sets

With Split Case Firefighting Pump Sets Skid Mounted Fire Pump 3000GPM @ 135PSI UL/FM Listed NFPA20 Accordance

The most important aspect of Fire Protection package is the reliability of the Fire Fighting Pumping System to ensure adequate water supply at required pressure at emergency conditions. Keeping in mind the same, we bring forth highly efficient Fire Fighting Pumps. Our Fire Fighting Pumps include FM Approved UL Listed Fire Fighting Set, Containerized Fire Fighting Pump, Multi Stage Multi Outlet (MSMO) Fire Fighting Pump, Standard Fire Fighting Set, etc. The Fire Fighting Pumps can be acquired in different specifications from us. We are a prominent name as Fire Fighting Pumps Fire Fighting Pumps Supplier in Hyderabad, Andhra Pradesh.

Application:
Industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;
Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;



 Parameters:



HEADPUMP MODELSPEEDMAX SHAFT POWERMOTOR DRIVERDIESEL ENGINE DRIVER
PSIFEETMETERRPMHPKW

MODEL
(TECHTOP&UL)

HPKW

MODEL
(NM&UL)

HPKWMODEL(DE MAAS&FM)HPKW
13531295SCF300-250-490
(12x10")
1800
(60Hz)
473352.4TXC 586/7T450U4B
(NEMA/TEFC)
450338NM6-128473352DF15TiH-F490366





Pump types:
Split-case pump, Jockey pump, In-line pump


Configuration types:


1. Electric motor driven fire pump sets
2. Diesel engine driven fire pump sets
3. jockey pump sets
Standard:
UL Listed
FM Approval
NFPA20 Package




Performance Ranges:



UL:


 Q: 500-4000GPM H:100-190PSI


FM:


 Q: 500-4000GPM H:100-190PSI


CCCF:


 Q:20-500L/S H:0.42-2.0Mpa


NFPA20:


 Q: 300-8000GPM H:60-300PSI


Advantage:

  • We are the first member of NFPA among Chinese pump manufacturers. The production of our fire pump groups is strictly in accordance with NFPA20.
  • We are the first manufacturer in the world who have both UL/FM certification for fire pump and the fire-fighting diesel engine, also the only UL Witness laboratory in Asia for fire-fighting pump and fire-fighting diesel engine.
  • We have applied dozens of patents.
  • We have young team, top experts.


Service:


1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
4. Professional team service
5. Customiszed production for different package
6. No delay on shipment
