Product Details
Place of Origin: China
Brand Name: NM FIRE
Certification: NFPA20/UL/FM/EN12845/CCCF
Model Number: SCF125-80-350(UL/FM)
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 45~60 Working Days after receipt of the deposit
Payment Terms: L/C, T/T
Flow:: |
500 |
Head: |
10 Bar |
Engine:: |
NM Series |
Control Panel:: |
Techtop(UL) |
Material: |
Cast Iron |
Color: |
Red |
Flow:: |
500 |
Head: |
10 Bar |
Engine:: |
NM Series |
Control Panel:: |
Techtop(UL) |
Material: |
Cast Iron |
Color: |
Red |

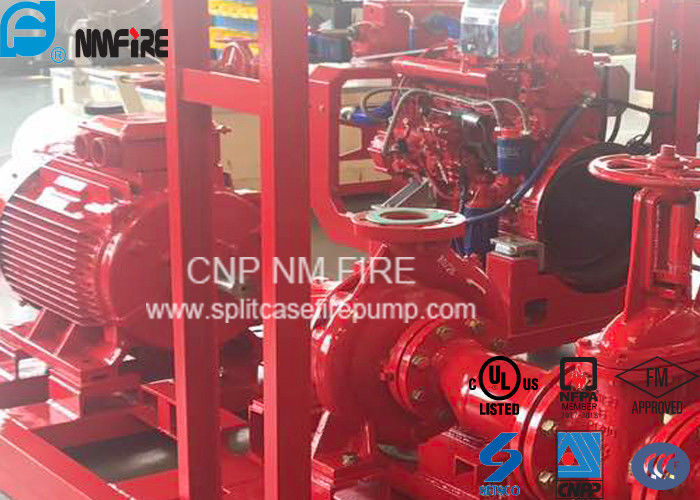

500 USGPM @10bar Electric Motor Driven Split Case Firefighting Pump Sets UL Listed FM Approved
Pump: Split Case Pump
Model: SCF125-80-350(UL/FM)
Q= 500usgpm H=10bar n=2980 rpm
Material:
Casing---Ductile Cast iron
Impeller---SS304
Shaft--- AISI 4340
Shaft sleeve---SS304
Seal------ Gland packing
Wear ring----Bronze
Bearing---SKF
Motor: Techtop(UL)
Model: T250M2-2
75KW/50HZ /380V/ 3PH
Control Panel: Eaton (UL/FM)
Model: FD70-100-C-L1-B
The Electric Motor Driven
Techtop reputation has been built by implementing new innovation in the motor industry. The motors unique features enable the company to offer products with technical and efficiency benefits which exceed the level of our competition. Techtop motors offer a single stator design with optional removable feet for IEC, NEMA and GOST frames which allows for easy interchangability of components. Techtop owns over 30 intellectual property patents for its exceptional product design and motor technology. The quality of Techtop motors and manufacturing processes meet and exceed many domestic and international standards, including ISO9001, ISO14001, CCC, CE, CSA, UL (1004-1,1004-5), EEV, CC, ATEX, and GL etc.
Parameters:
| HEAD | PUMP MODEL | SPEED | MAX SHAFT POWER | MOTOR DRIVER | |||||
| PSI | Bar | METER | RPM | HP | KW | MODEL | HP | KW | |
| (TECHTOP&UL) | |||||||||
| 145 | 10 | 102 | SCF125-80-350(UL/FM) | 2980 | 96 | 71.5 | T250M2-2 | 100 | 75 |
| (50Hz) | |||||||||
Product Type:
horizontal Split Case Fire Pump
NFPA20 Package
Advantage:
We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well, also the firt company in the world who was authorized by UL CCIC as witness testing center for both fire pump and fire fighting engines.
Service:
| 1. Reply within 24 hours. |
| 2. High-quality products and the most reasonable price |
| 3. Data and chemical technology support. |
