Product Details
Place of Origin: China
Brand Name: NM Fire
Certification: UL/FM
Model Number: SCF250-200-350
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: IRON FRAME WITH PLYWOOD CASE
Delivery Time: 75DAYS
Certificate: |
UL FM SETSCO CCCF |
Driven Mode: |
Diesel Engine |
Shaft: |
AISI 4340 |
Seal: |
Gland Packing |
Wear Ring: |
Bronze |
Brand: |
NM Fire |
Certificate: |
UL FM SETSCO CCCF |
Driven Mode: |
Diesel Engine |
Shaft: |
AISI 4340 |
Seal: |
Gland Packing |
Wear Ring: |
Bronze |
Brand: |
NM Fire |

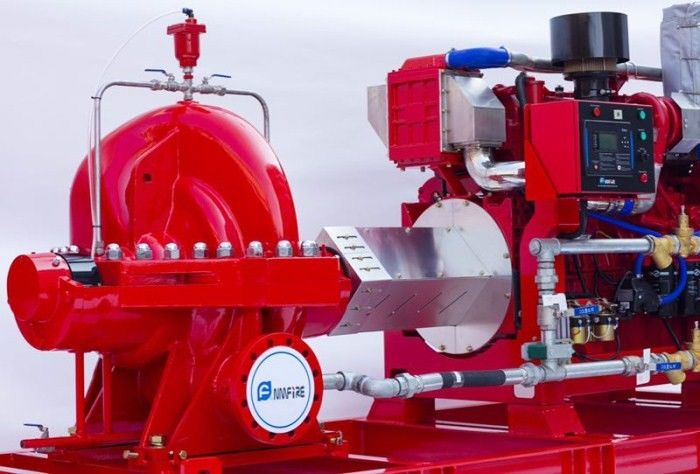

High Capacity Diesel Fire Fighting Pumps / Stable Red Fire Jockey Pump
Main Configuration:
| Rated Flow | 2500 GPM / min (2980rpm) |
| Rated Head | 120 PSI |
| Pump : NM Fire (UL/FM ) | SCF 250-200-350 |
| Casing | Ductile Cast Iron |
| Impeller | SS304 |
| Shaft | AISI4340 |
| Shaft Sleeve | SS304 |
| Seal | Gland Packing |
| Wear Ring | Bronze |
| Bearing | SKF |
| Diesel Engine: NM FIRE (UL) | NM6-110D / 2900 rpm/ 268HP |
| Control Panel: Tornatech (UL/FM) | GPD-24-120/ 220 |
UL CERTIFICATE OF PARTICIPATION
NM FIRE was granted the qualification fo witness laboratory for both UL 448 and UL 1247 fire fighting diesel engine,
marking that the testing ability for the pump and fire fighting diesel engine was promoted to a new height. Meanwhile,
fire pumps and diesel engine can be tested in NM FIRE’S laboratory according to some related testing standard with
the assistance of UL engineers, which will improve the efficiency of both certification and R&D, and will be of great
importance to company’s products research and market development.
This qualification fully certified that NM FIRE’S strength in technical R&D for fire products was highly recognized by UL,
it marks NM FIRE’S testing ability for above products has reached international advanced level.
