Product Details
Place of Origin: China
Brand Name: NM Fire
Certification: UL / FM
Model Number: SCF125-100-300
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: IRON FRAME WITH PLYWOOD CASE
Delivery Time: 75DAYS
Type: |
Horizontal (NFPA 20 UL Listed / FM Approved) |
Capacity: |
500gpm |
Differential Pressure: |
180psi |
Driver: |
Diesel Engine |
Controller: |
UL/FM |
Type: |
Horizontal (NFPA 20 UL Listed / FM Approved) |
Capacity: |
500gpm |
Differential Pressure: |
180psi |
Driver: |
Diesel Engine |
Controller: |
UL/FM |

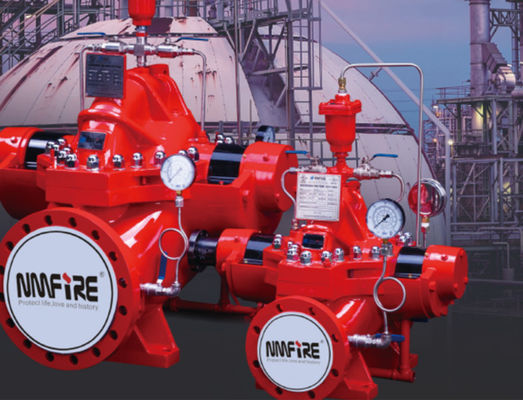

NM Fire Split Case Fire Pump As per NFPA20 AND UL/FM 500gpm@180psi with Jockey
Horizontal split case pumps are the most common type of fire pump. These pumps are specifically
designed and tested for fire service applications where reliability of performance is of vital importance.
Split case pumps are characterized by: • Easy access to all working parts; • Rugged construction; • Liberal
water passages; and • Efficient operation. Split case fire pumps are specified when the source of water is
located above the surface of the ground and provides a positive suction pressure to the pump at any
performance point. Single-stage or multistage pumps are available dependent upon discharge pressure
requirements.
Main Configuration:
| Rated Flow | 500gpm / min |
| Rated Head | 180psi |
| Pump Model | SCF125-100-300 (Split case pump) |
| Casing | Ductile Cast Iron |
| Impeller | SS304 |
| Shaft | AISI4340 |
| Shaft Sleeve | SS304 |
| Seal | Gland Packing |
| Wear Ring | Bronze |
| Bearing | SKF |
| Diesel Engine | NM4-108B at 2950rpm / 121HP |
| Control Panel | FD120-L1 ( Eaton UL/FM ) |
Application:
Commercial Fire Fighting
Hotels, Hospitals, Supermarkets, Metro stations, Airports, Office buildings, Schools, Museum, Warehouses etc.
Our Mission:
To protect social security is the duty and mission of fire fighting enterprise. As a manufacturer of UL&FM listed
products, NM FIRE positively practise " to protect personal and property safety, maintain social security and harmony"
Its technical team was led by France experts who have more than 20 years of experience in fire fighting research and
development, have overcome many difficulites and built new situation of professional fire fighting technology research
in China.
"Way stetched endless ahead and we will search with our unbending will." NM FIRE will continuously build good reputation
for "made in China" , strive to provide customers with high quality products and convenient service, building safe and better
Chinese Dream.
